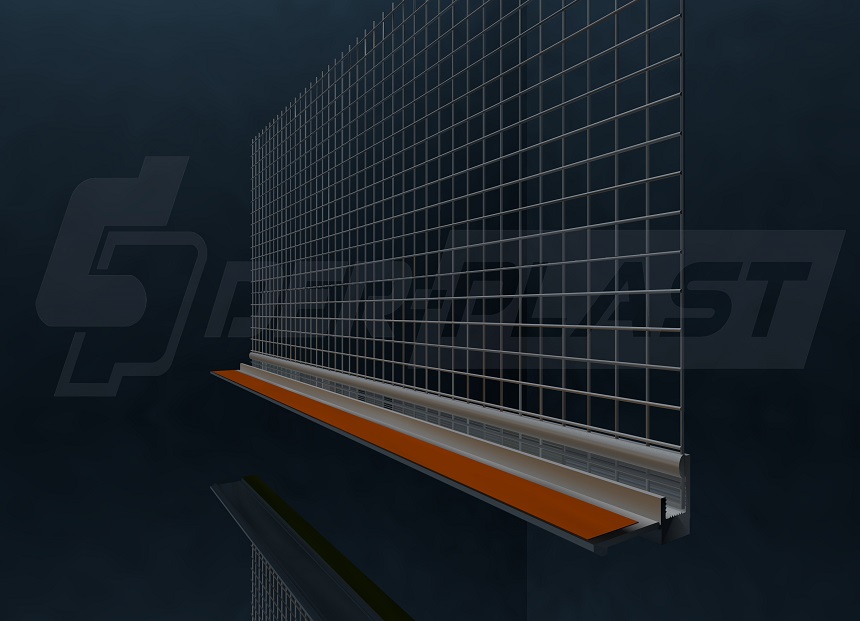

Window reveal profile 6



Description

Window reveal profiles with mesh and lamella are applied for thermal insulation systems to ensure solid jointing between the window or door frame and the structural plaster. They protect against cracks at the interface between the window frame and plaster. Window reveal profiles can be used for PVC, wood and aluminum windows.

Application – advantages

  • creates flexible junction between the internal plaster system and the window or door frame
  • prevents the final coating from flaking off the window or door frame
  • protects window or door frames and panels against mechanical damage or getting soiled during the application of building adhesive or rendering
  • prevents hairline cracking
  • prevents penetration of cold and noise
  • no additional sealing of joints is required
  • suitable for narrower window or door frames
  • creates an aesthetically perfect finish





Product Window reveal profile 6 mm with mesh
Product number WPM6
Length 2,5 m / 3,0 m
Quantity in box 62,5 m / 75 m (25 pcs)
Quantity on pallet 2.500 m / 3.000 m (1000 pcs = 40 boxes)
Mesh/Profile connection welded
Profile material UV-stable and alkali-proof polyvinyl chloride (PVC)
Mesh material fiberglass reinforcement mesh ADFORS (Vertex) R 117 ETAG-004 certified
