Window reveal 6 with lamella

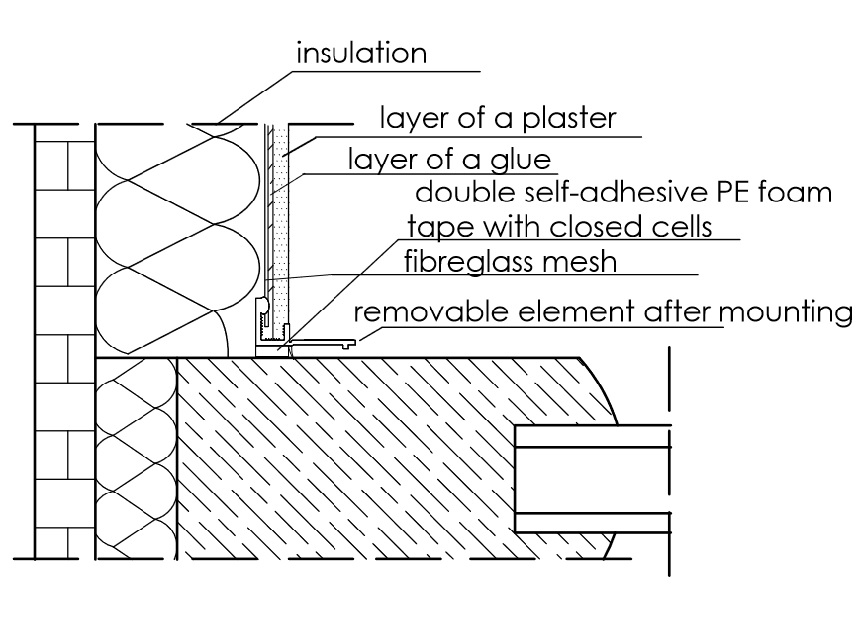

Window reveal profiles with mesh are applied for thermal insulation systems to ensure solid and unbreakable jointing between the window or door frame and the structural plaster. They protect against cracks at the interface between the window frame and plaster. Window reveal profiles can be use for PVC, wood and aluminium windows.

Application – advantages

  • creates flexible junction between the internal plaster system and the window or door frame
  • prevents the final coating from flaking off the window or door frame
  • protects window or door frames and panels against mechanical damage or getting dirty during the application of building adhesive or rendering
  • prevents hairline cracking
  • prevents penetration of cold and noise
  • no additional sealing of joints is required
  • suitable for narrower window or door frames
  • a part of the profile is not hidden, its front side is visible
  • creates an aesthetically perfect finish

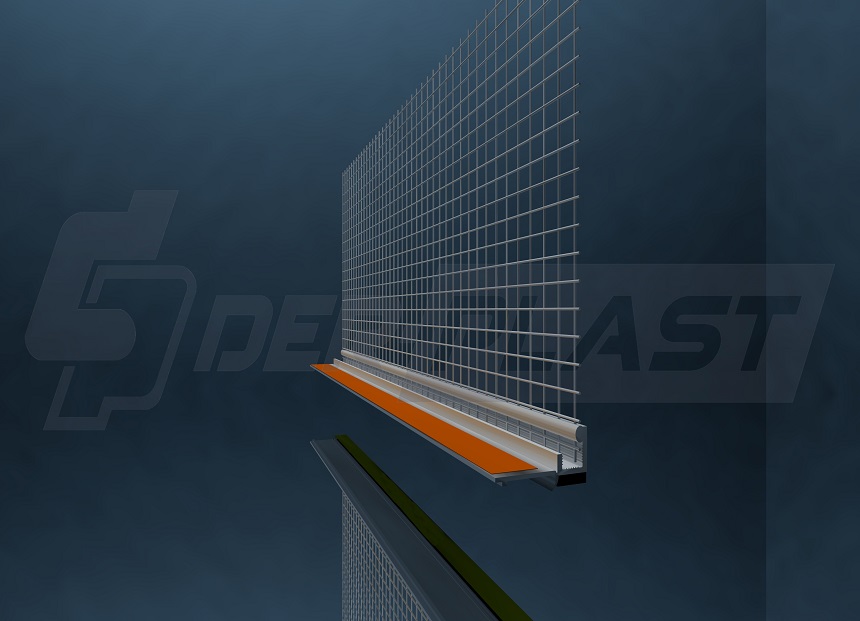

Product Window reveal profile 6 mm with mesh with protective lamella
Product number WPML6
Length 2,5 m / 3,0 m
Quantity in box 62,5 m / 75 m (25 pcs)
Quantity on pallet 2.500 m / 3.000 m (1000 pcs = 40 boxes)
Mesh/Profile connection welded
Profile material UV-stable and alkali-proof polyvinyl chloride (PVC)
Mesh material fibre glass reinforcement mesh ADFORS (Vertex) R 117 ETAG-004 certified
